A1 Fire Rated Risers

A1 Fire Rated Risers

Pavetuf fire-rated, non-combustible pedestals provide a solution for flat roofs, balconies and terraces at height for the installation of porcelain paving or metal joists.



Our Class A-rated products offer superior durability and performance in high-risk environments and are designed to meet the latest fire regulations. Suitable for both residential or commercial applications, the range ensures safety and strength.

FEATURES & BENEFITS

  • Class A1 Fire-rated
  • High load bearing capacity: 3,000 kg/m²
  • Height adjustment ranging from 35mm up to 220mm
  • Resistant to temperatures between -25 and +70 °C
  • BS EN 13501-1 compliant
  • Adjustable at the base with a locking system once the height is set to avoid movement



FIRE RATED OPTIONS



  • FS 3.5/4.5  – Fire rated base heights from 35 – 45mm.
  • FS 4.5/6  – Fire rated base heights from 45 – 60mm.

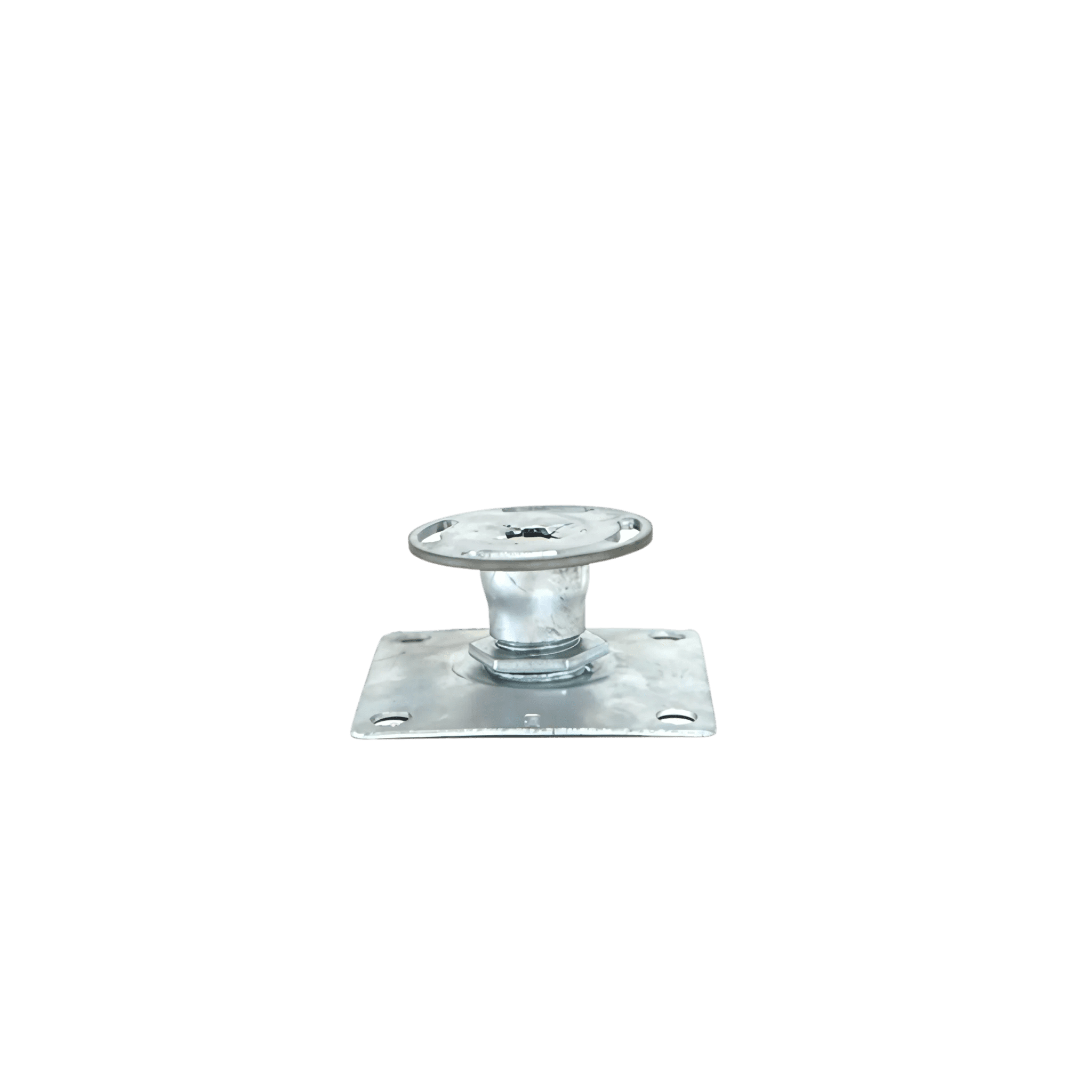

  • FS 4.5/6.5  – Fire rated base heights from 45 – 65mm.

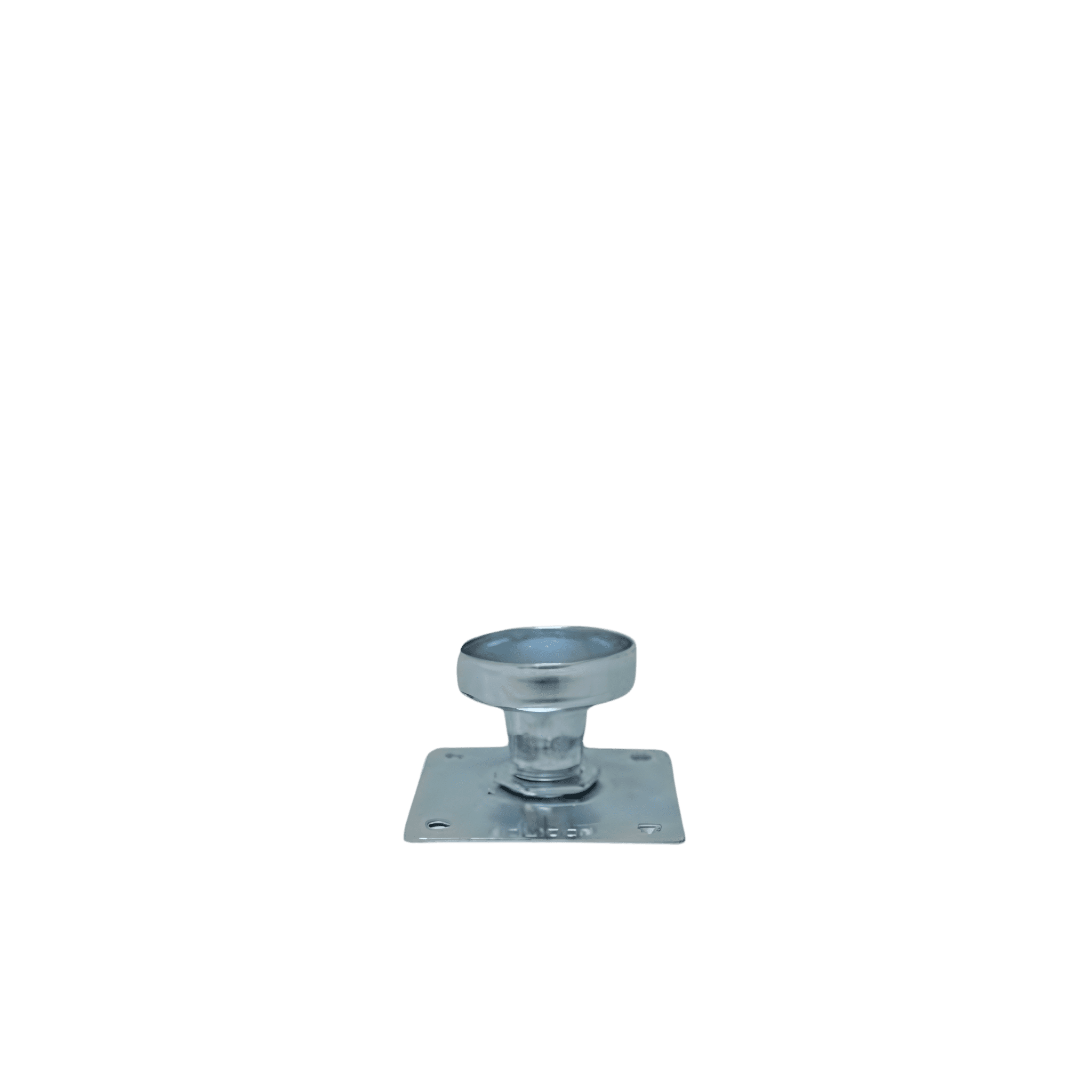

  • FS 6/8  – Fire rated base heights from 60 – 80mm.

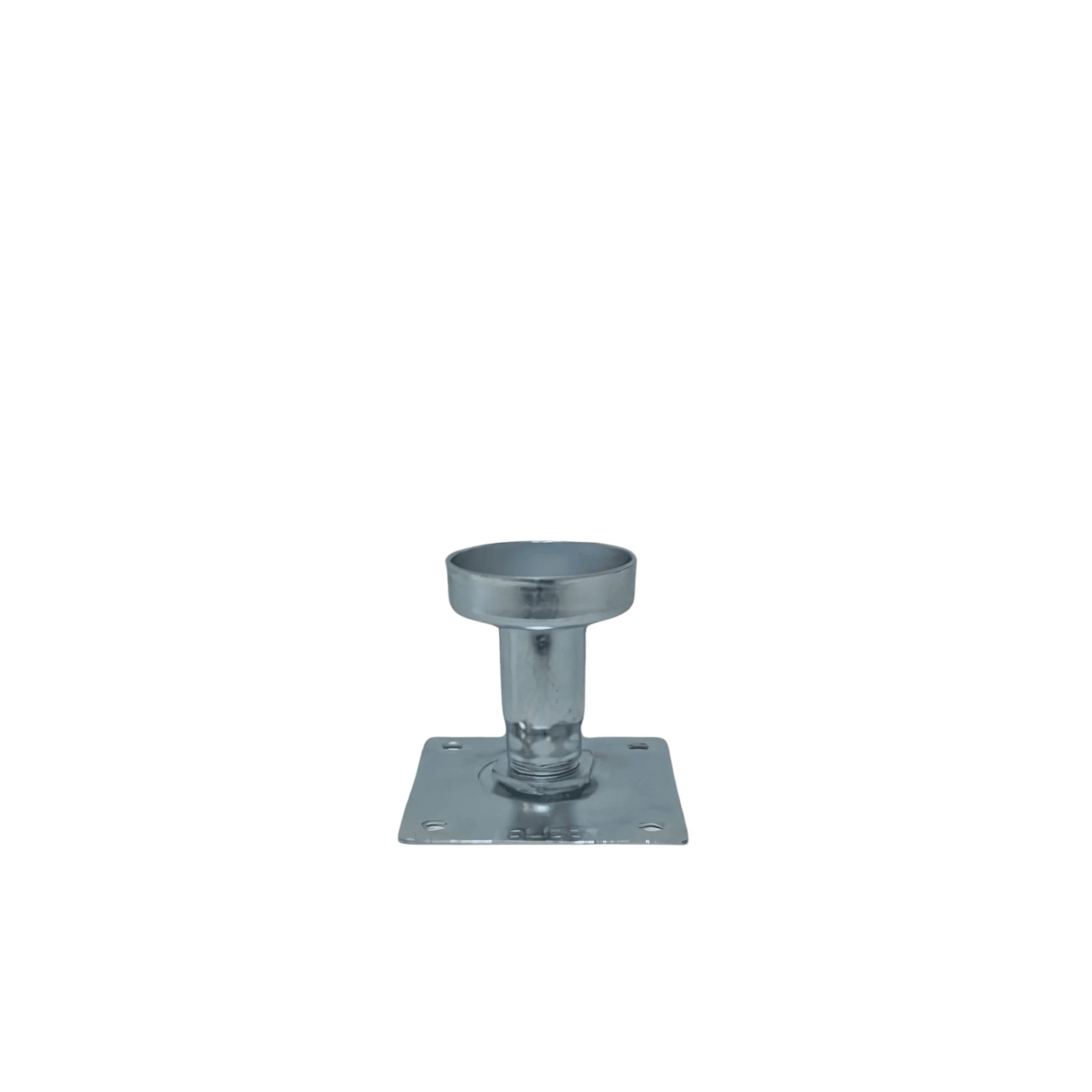

  • FS 7/10 – Fire rated base heights from 70 – 100mm.
  • FS 9/14 – Fire rated base heights from 90 – 140mm.

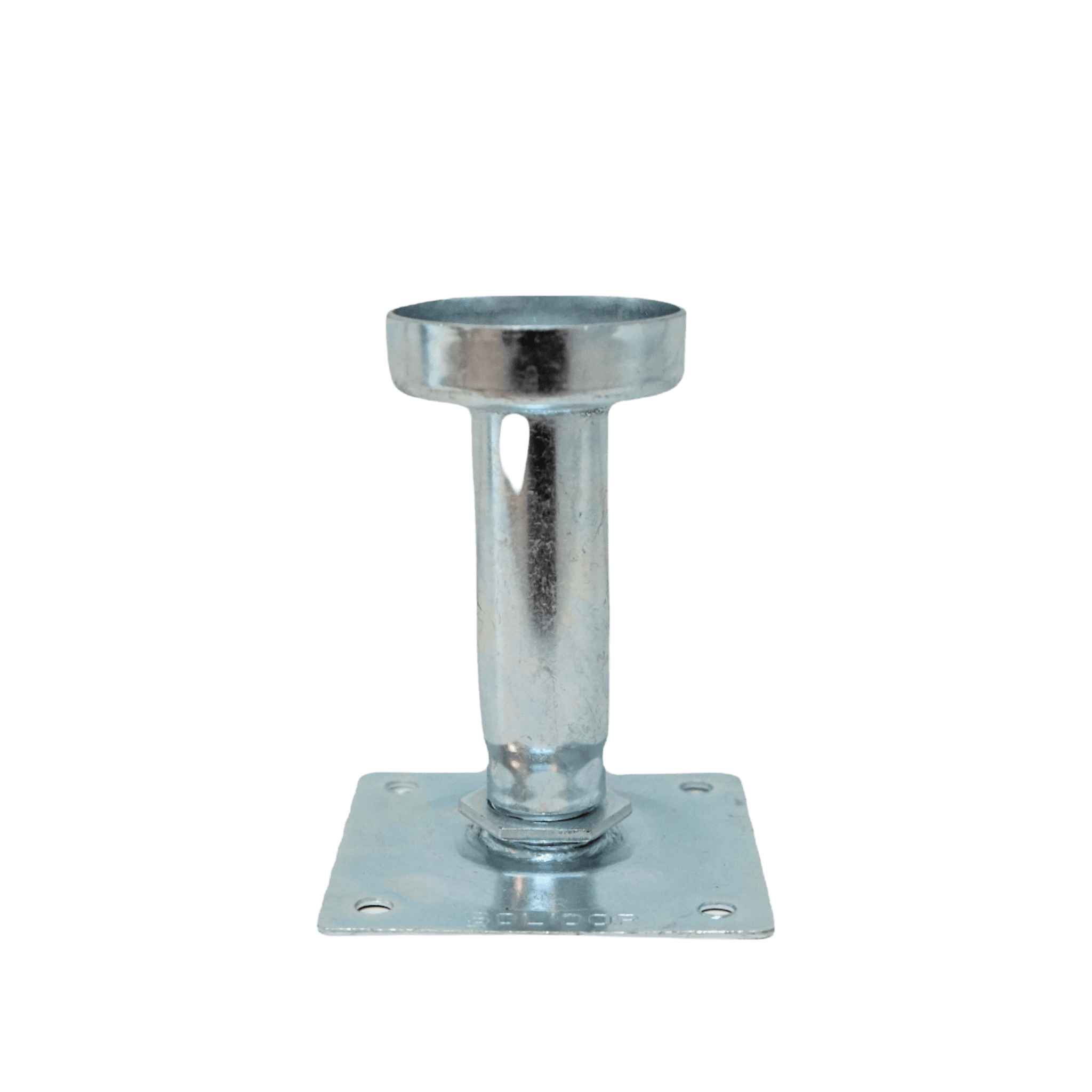

  • FS 13/22 – Fire rated base heights from 130 – 220mm.

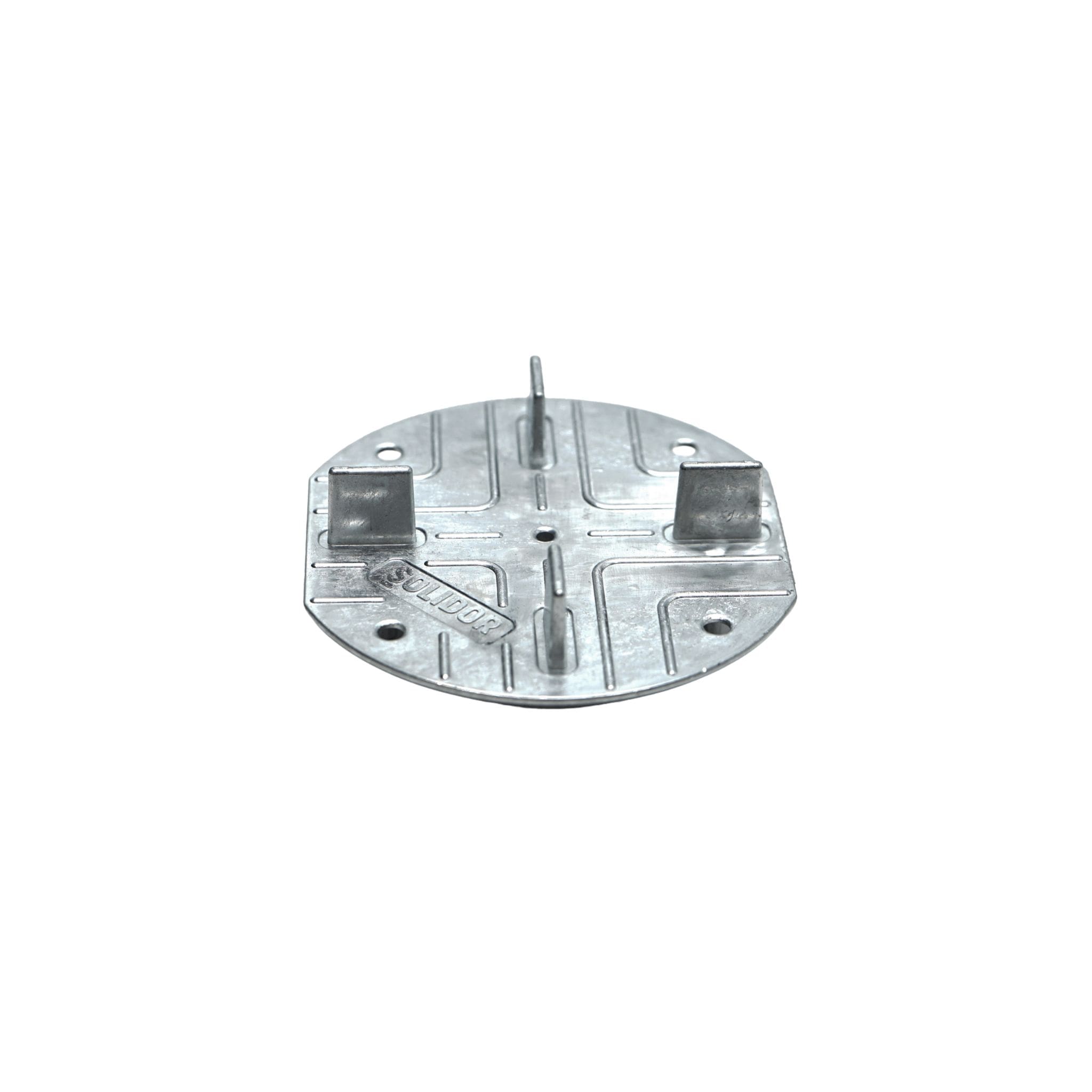

  • FS C3/4T  – Fire rated top plate for porcelain and concrete paving.
  • FS CPV+ – Fire rated top plate for decking joists.



We recommend you visit the Knowledge Hub for further information, advice and FAQs.

  • Product
    Thickness(mm)
    Nominal Weight per pack (kg)
    Nominal Coverage per pack (m²)
    Number of Pieces per pack
  • 35-45mm Riser 40/Pk (FS 3.5/4.5)

    n/a

    11.60

    n/a

    40

  • 45-65mm Riser 40/Pk (FS 4.5/6.5)

    n/a

    12.68

    n/a

    40

  • 60-80mm Riser 40/Pk (FS 6/8)

    n/a

    14.08

    n/a

    40

  • 70-100mm Riser 40/Pk (FS 7/10)

    n/a

    15.24

    n/a

    40

  • 90-140mm Riser 20/Pk (FS 9/14)

    n/a

    17.32

    n/a

    20

  • 130-220mm Riser 20/Pk (FS 13/22)

    n/a

    21.99

    n/a

    20

  • CPV+ Top Plate 40/Pk (FS CPV+)

    n/a

    4.48

    n/a

    40

  • C3/4T Top Plate 40/Pk (FS C3/4T)

    n/a

    36.40

    n/a

    40
